Barracuda Can-Bus Relay N1003-CR> Motor Onderdelen

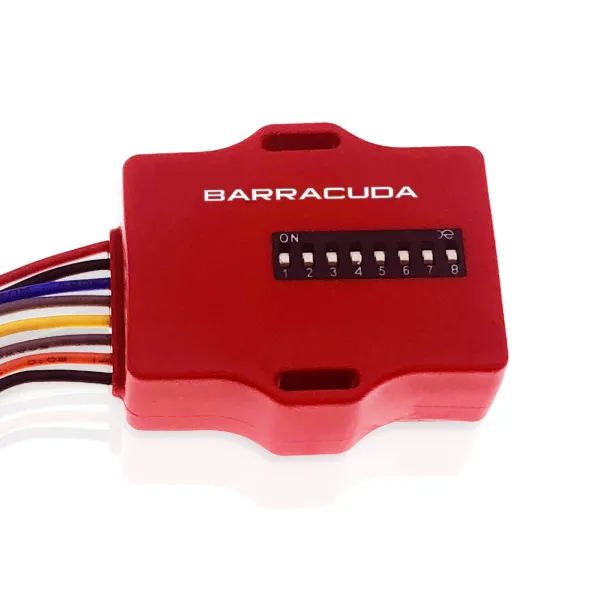

The r CAN-BUS RELAY BARRACUDA is an electronic component essential for the correct operation and flashing of the direction indicators relating to most vehicles equipped with the CAN-BUS system._x005f_x000D__x005f_x000D_The CAN-BUS RELAY supplies an electrical load necessary for the correct operation and flashing of the BARRACUDA LED INDICATORS through the combination of the appropriate switches._x005f_x000D__x005f_x000D__x005f_x000D_It is possible to operate up to 2 channels, for example: the direction indicators in the Rear Left and direction indicators in the Rear Right._x005f_x000D__x005f_x000D_The CAN-BUS RELAY BARRACUDA can also be used on vehicles equipped with original LED direction indicators._x005f_x000D__x005f_x000D_The following resistance values ​​can be set:_x005f_x000D_150 ohms_x005f_x000D_170 ohms_x005f_x000D_200 ohms 240 ohms 300 ohms 400 ohms 600 ohms_x005f_x000D_1200 ohms_x005f_x000D__x005f_x000D_Cable length = 200mm with 3mm Faston_x005f_x000D__x005f_x000D_Connections:_x005f_x000D__x005f_x000D_Yellow = channel 1 input (+)_x005f_x000D_Orange = output channel 1 (+)_x005f_x000D_Blue = input channel 2 (+)_x005f_x000D_Red = output channel 2 (+)_x005f_x000D_Gray = input mass (-)_x005f_x000D_Black = exit surface (-)_x005f_x000D__x005f_x000D_Connectivity: 1 CAN-BUS REALIS for 1 PAIR of INDICATORS.
